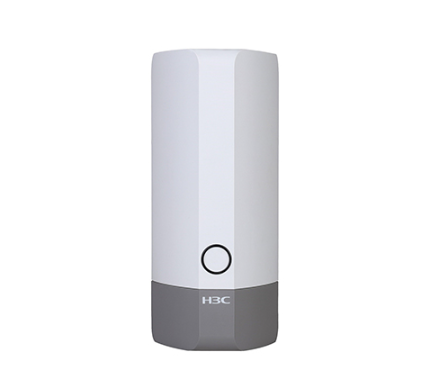

The H3C WA5320XS-LI wireless product is a new generation of ultra-gigabit outdoor intelligent 802.11ac wave2 wireless base station access equipment (hereinafter referred to as AP) independently developed by H3C Technologies Co., Ltd. The uplink of this series of wireless products adopts gigabit Ethernet interface, breaking through the limitation of 100 Mbps speed, making wireless multimedia applications a reality.

The WA5320XS-LI features integrated intelligent RF coverage optimization technology, making outdoor installation and debugging very convenient. It is widely used in professional intelligent coverage for various WLAN outdoor scenarios, including wireless cities, wireless communities, and scenic spots.

1. Achieve intelligent gigabit cloud access and high-quality wireless network TCO

The WA5320XS-LI complies with the 802.11ac wave2 protocol standard and adopts a professional modular design. A single radio frequency can provide wireless access speeds of up to 867Mbps, with the entire unit reaching a maximum speed of 1267Mbps. In actual user environments, its performance is approximately three times that of 802.11n products in the same environment. Through built-in integrated intelligent radio frequency coverage optimization technology, it effectively provides higher-performance mobile cloud access services in terms of coverage, access density, and operational stability, helping users achieve a superior wireless network TCO (Total Cost of Ownership).

2. Provide local forwarding function

When the WA5320XS-LI (Fit mode) forwards data over a wide area network, the wireless access devices are deployed in branch offices, while the wireless controller is deployed at headquarters. All user data is sent from the wireless access devices to the wireless controller, which then centrally forwards it, resulting in low forwarding efficiency. The WA5320XS-LI can directly convert data packets into wired format packets on the wireless access devices, allowing data packets to be forwarded locally without passing through the wireless controller, significantly improving forwarding efficiency.

3. Supports IPv4/IPv6 dual protocol stack (Native IPv6)

The WA5320XS-LI fully supports IPv6 features, and the device implements a dual IPv4/IPv6 protocol stack. Regardless of whether the existing wired network is IPv4 or IPv6, it can automatically register with the Xiaobei MSG series multi-service gateway and WAC series controller to provide WLAN services, preventing it from becoming an information island in the network.

4. Provide EAD wireless access

End User Admission Domination (EAD) solutions address the issue of secure network access for user terminals by integrating network access control and endpoint security products. They enforce enterprise security policies on user terminals accessing the network and, through collaboration with a security policy server, can handle unqualified wireless clients such as those infected with viruses or possessing system vulnerabilities through various methods, including disconnection, isolation, alerts, or monitoring. Only wireless clients that comply with the corresponding security policies are allowed to access the network, thereby improving the overall security of the wireless network.

5. Supports remote probe analysis

The WA5320XS-LI supports functioning as a sensor device for remote probe analysis. It can listen to and capture Wi-Fi packets within the coverage area and mirror them in real time to a local analysis device for network administrators to troubleshoot and optimize. The remote probe analysis function can perform non-convergent mirroring of the working channel or poll and sample all channels, flexibly meeting the requirements of wireless network monitoring and maintenance.

6. Built-in RF Optimization Engine (ROE)

The WA5320XS-LI features a built-in RF Optimizing Engine, which effectively enhances application acceleration and quality assurance in high-density access and streaming media transmission scenarios in wireless deployments through feature- and protocol-based RF optimization. This includes features such as multi-user fair scheduling, fair hybrid access, interference filtering, optimized rate, spectrum navigation, multicast enhancement (IPv4/IPv6), per-packet power control, and intelligent bandwidth assurance.

7. Supports intelligent load balancing

The WA5320XS-LI supports complex load balancing based on the number of connected users and network traffic. When the wireless controller detects that the load of a wireless access device exceeds a set threshold, it automatically calculates whether there are any lightly loaded wireless access devices available for the user to connect to. If so, the controller will reject the user's connection request, and the user will connect to another lightly loaded wireless access device. However, if the wireless user is not in an overlapping coverage area, traditional load balancing methods often result in network connectivity failures, causing mis-balancing. H3C innovatively supports intelligent load balancing technology, ensuring that load balancing is only activated for wireless users in overlapping coverage areas, effectively avoiding mis-balancing and maximizing wireless network capacity.

8. Supports Chinese SSIDs

The WA5320XS-LI supports the use of Chinese SSIDs, which can specify an SSID containing up to 16 Chinese characters, or a mixed Chinese and English SSID, providing greater convenience for domestic users.

9. Fully supports intelligent wired and wireless integrated management

All H3C wireless products can achieve integrated wired and wireless management based on WSM through an open network management protocol.

WSM is a wireless operations management component developed by H3C based on its next-generation business software platform, iMC (Intelligence Management Center). It not only provides administrators with flexible component selection but also conforms to the industry's mainstream SOA architecture, possessing excellent scalability to meet the evolving needs of customer network management. The web-based management system provides wireless service managers with a simple and user-friendly management platform. In conjunction with the iMC intelligent management platform and other components, it can also realize functions such as panel management, fault management, performance monitoring, software version management, configuration file management, and access user management for wireless devices. Furthermore, it can provide unified management of other devices in the network, truly achieving intelligent integrated wired and wireless management.
