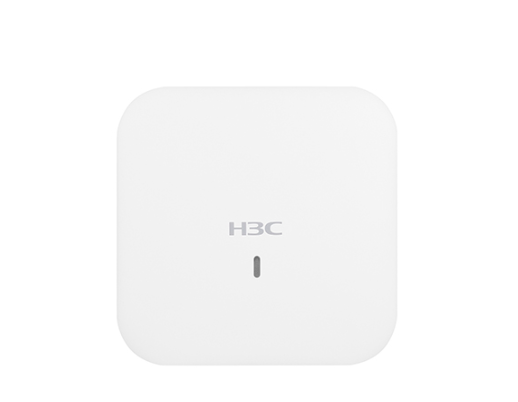

The H3C WA6320S-C wireless product is a new generation 802.11ax product independently developed by H3C Technologies Co., Ltd.It adopts a dual-frequency, four-stream 802.11ax design and can be widely used in enterprise, school, and medical scenarios.

The WA6320S-C features a built-in smart antenna that supports dual-band access. It has a compact and attractive design and flexible installation options, suitable for various mounting methods such as wall mounting, ceiling mounting, and 86-type junction boxes.

1. Design of the new generation 802.11ax technology

The H3C WA6320S-C product adopts the new generation 802.11ax protocol, a dual-band 4-stream design, and a maximum access rate of 1.775Gbps. All radio frequencies support MU-MIMO. The 5GHz radio frequency uses a 2-space-stream design with a maximum access rate of 1.2Gbps; the 2.4GHz radio frequency also uses a 2-space-stream design with a maximum access rate of 0.575Gbps, making it very suitable for indoor installation scenarios.

2. Enables simultaneous communication from multiple terminals, overcoming the shortcomings of traditional wireless technology.

The H3C WA6320S-C AP supports MU-MIMO technology, the most important feature of 802.11ax. MU-MIMO allows the AP to send data to multiple terminals simultaneously. Specifically, the WA6320S-C can send data to multiple terminals concurrently, depending on the number of terminal streams. The WA6320S-C can simultaneously send wireless packets to up to four terminals, breaking through the traditional serial communication mechanism of wireless networks. This significantly improves the utilization of wireless spectrum resources, greatly increasing the number of effective access users, reducing wireless network deployment costs, and enhancing the user experience in high-density user scenarios.

3. Achieve intelligent cloud access and high-quality wireless network TCO

The WA6320S-C AP complies with the 802.11ax protocol standard and provides access on two different frequency bands, achieving wireless transmission rates of 1.2Gbps + 0.575Gbps. Through built-in antenna coverage technology, it effectively provides higher-performance mobile cloud access services in terms of coverage range, access density, and operational stability, helping users achieve a superior wireless network TCO (Total Cost of Ownership).

4. Supports OFDMA (Orthogonal Frequency Division Multiple Access) technology.

The WA6320S-C wireless access point supports OFDMA technology, which allows the AP to further subdivide the wireless bandwidth and transmit data to multiple terminals at the same time using different subcarriers. This reduces the latency caused by air interface resource conflicts and backoff in traditional protocols, and improves the user experience of low-latency applications such as voice and video in multi-user scenarios.

5. Supports space reuse technology

The WA6320S-C wireless access point supports spatial multiplexing technology. By identifying unrelated packets and controlling and adjusting the transmission power, the AP can improve the problem of co-channel interference during multi-user use, and also greatly improve the utilization of spectrum resources.

6. Supports TWT (Target Wake-up Time) technology.

The WA6320S-C wireless access point supports TWT technology, which allows the AP to uniformly schedule the wake-up and sleep of terminals. This not only reduces conflicts between terminals but also reduces unnecessary wake-up times, thus achieving energy saving.

7. Green and low-carbon design

The WA6320S-C adopts a professional green and low-carbon design, supports Dynamic MIMO Power Saving Mode (DMPS) and Enhanced Automatic Power Saving Transmission (E-APSD), intelligently identifies the actual performance requirements of the terminal, rationally allocates the terminal sleep queue, and dynamically adjusts the MIMO working mode.

The WA6320S-C supports Green AP mode, enabling single-antenna standby for more precise energy saving.

The WA6320S-C utilizes innovative packet-by-packet power control (PPC) technology to dynamically adjust the bidirectional power between the AP device and the client while ensuring successful message transmission, thereby reducing device power consumption and extending mobile terminal standby time.

8. Provide local forwarding function

When the WA6320S-C (Fit mode) forwards data over a wide area network, the wireless access devices are deployed in branch offices, while the wireless controller is deployed at headquarters. All user data is sent from the wireless access devices to the wireless controller, which then centrally forwards it. The WA6320S-C can directly convert data packets into wired format packets on the wireless access devices, allowing data packets to be forwarded locally without passing through the wireless controller, thus significantly saving wired bandwidth.

9. Supports IPv4/IPv6 dual protocol stack (Native IPv6)

The WA6320S-C fully supports IPv6 features, implementing a dual IPv4/IPv6 protocol stack. Regardless of whether the existing wired network is IPv4 or IPv6, it can automatically register with the WX series controller to provide WLAN services, preventing it from becoming an isolated information island in the network.

10. Provide EAD wireless access

End User Admission Domination (EAD) solutions address the issue of secure network access for user terminals by integrating network access control and endpoint security products. They enforce enterprise security policies on user terminals accessing the network and, through collaboration with a security policy server, can handle unqualified wireless clients such as those infected with viruses or possessing system vulnerabilities through various means, including disconnection, isolation, alerts, or monitoring. Only wireless clients that comply with the corresponding security policies are allowed to access the network, thereby improving the overall security of the wireless network.

11. Supports remote probe analysis

The WA6320S-C supports use as a sensor device for remote probe analysis. Each radio frequency can listen to and capture Wi-Fi packets within the coverage area and mirror them in real time to a local analysis device for network administrators to troubleshoot and optimize. The remote probe analysis function can perform non-convergent mirroring of the working channel or poll and sample all channels, flexibly meeting the requirements of wireless network monitoring and maintenance.

12. Built-in RF Optimization Engine (ROE)

The WA6320S-C features a built-in RF Optimizing Engine, which effectively enhances application acceleration and quality assurance in high-density access and streaming media transmission scenarios in wireless deployments through feature- and protocol-based RF optimization. This includes features such as multi-user fair scheduling, fair hybrid access, interference filtering, faster data rates, spectrum navigation, multicast enhancement (IPv4/IPv6), per-packet power control, and intelligent bandwidth assurance.

13. Supports intelligent load balancing

The WA6320S-C supports complex load balancing based on the number of connected users and network traffic. When the wireless controller detects that the load of a wireless access device exceeds a set threshold, it automatically calculates whether there are any lightly loaded wireless access devices available for the user to connect to. If so, the controller will reject the user's connection request, and the user will connect to another lightly loaded wireless access device. However, if the wireless user is not in an overlapping coverage area, traditional load balancing methods often result in network connectivity failures, causing misbalancing. H3C innovatively supports intelligent load balancing technology, ensuring that load balancing is only activated for wireless users in overlapping coverage areas, effectively avoiding misbalancing and maximizing wireless network capacity.

14. Supports Chinese SSIDs

The WA6320S-C supports the use of Chinese SSIDs, which can specify an SSID containing up to 16 Chinese characters, or a mixed Chinese and English SSID, providing greater convenience for domestic users.

15. Fully supports intelligent wired and wireless integrated management

All H3C wireless products can achieve integrated wired and wireless management based on WSM through an open network management protocol.

WSM is a wireless operations management component developed by H3C based on its next-generation business software platform, iMC (Intelligence Management Center). It not only provides administrators with flexible component selection but also conforms to the industry's mainstream SOA architecture, possessing excellent scalability to meet the evolving needs of customer network management. The web-based management system provides wireless service managers with a simple and user-friendly management platform. In conjunction with the iMC intelligent management platform and other components, it can also realize functions such as panel management, fault management, performance monitoring, software version management, configuration file management, and access user management for wireless devices. Furthermore, it can provide unified management of other devices in the network, truly achieving intelligent integrated wired and wireless management.
